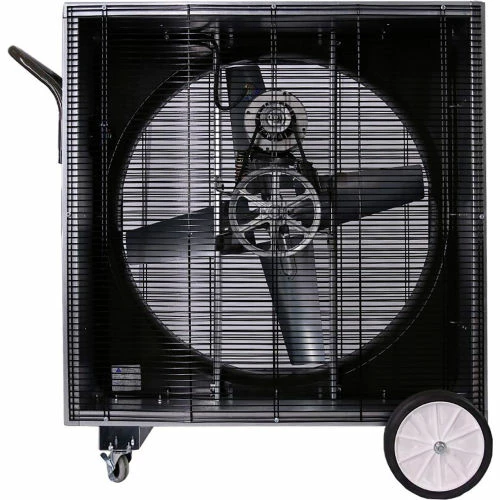

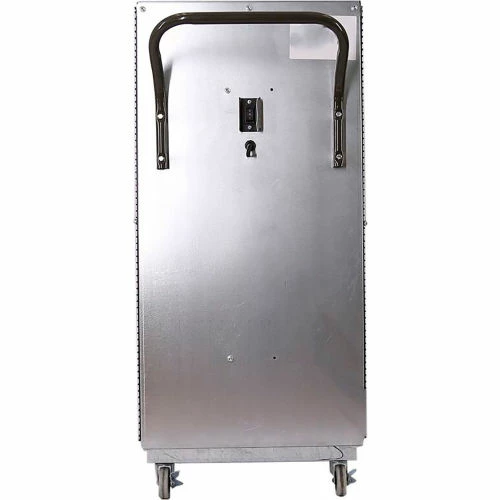

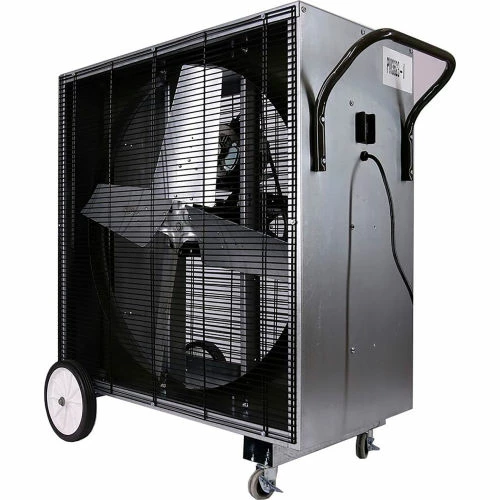

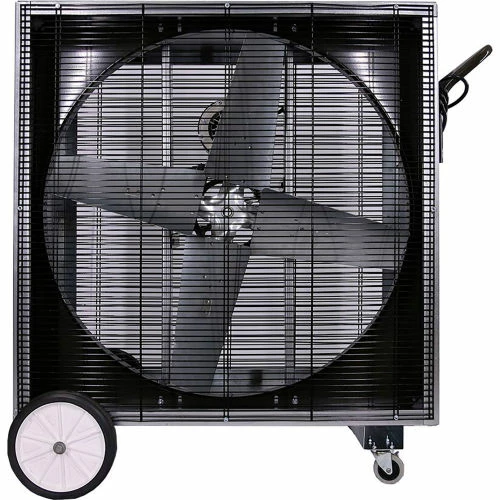

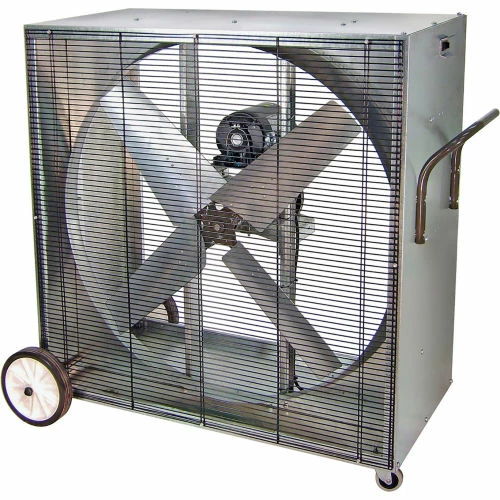

The 36′ PVI Series box fan is one of the most dependably built belt drive air circulators on the market. It is an excellent choice for machine shops, gyms, factories, or any location requiring portable air movement. It features heavy-duty intake and exhaust guards, and a rugged, heavy gauge galvanized housing. It employs a rolled inlet powder coated venturi to improve airflow in the box housing. It features a unique automatic belt tensioner that lengthens the life of the belt and motor while eliminating the belt and motor while eliminating the need for constant maintenance. The side ergonomic handles and two fixed and two swivel casters make it easy to maneuver. The belt drive open drip proof 1 1/2 HP motor is 230-volt single phase.
| Cord Length | 6 ft |
|---|---|
| Manufacturers Part Number | PVI3616-W |
| Mounting Style | Portable |
| Power Cord Type | SJO Type Plug |
| Description | Mobile Box Fan |
| CFM High | 13110 CFM |
| Voltage | 230 V |
| Amperage | 7.5 A |
| Drive Type | Belt Drive |
| Hertz | 60 Hz |
| Color Family | Silver |
| Horsepower | 1-1/2 HP |
| Blade Type | Steel |
| Phase | 1 |
| Weight | 157 lbs |
| Material | Galvanized Steel |
| Mounting Location | Free Standing |
| Motor Type | Open Drip Proof |
| Number of Blades | 4 |
| Number of Speeds | 1 |
| Fan Type | Industrial |
| Max Ambient Temperature | 104 °F |
| Width | 46 in |
| Height | 44 in |
| Fan Diameter | 36 in |
| Depth | 24 in |
| Warranty | 1 yr |
