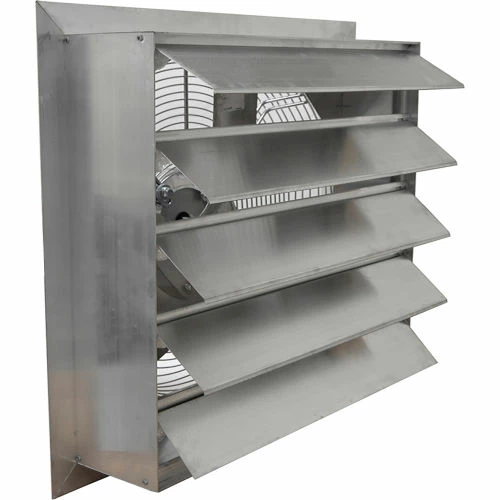

The AX series exhaust fan is a sturdily constructed, direct drive, horizontal discharge fan that is typically used for general ventilation of factories, garages, warehouses and other industrial or commercial buildings. The AX fans are available in multiple single-speed variations as well as twospeed and variable speed models. The AX series housings are constructed of heavy duty aluminum with built in shutters that automatically open when the fan starts and gravity closes when the fan stops.
Features:
- Sturdily constructed from all-aluminum extrusions.
- 8″ – 24″ models have heavy wire chrome plated OSHA guards on intake side of fan. 30″, 36″ & 42″ models have grey powder coated guards.
- Totally enclosed air over motor with overload protection.
| Roof Opening Length | 22 in |
|---|---|
| Includes | Fan housing blade and motor assembled |
| Brand | Canarm |
| RPM | 1700 rpm |
| Horsepower | 1/3 HP |
| Hertz | 60 Hz |
| Amperage | 1.4 A |
| Series | AX |
| Drive Type | Direct |
| Sones | 30 |
| Speed Controllable | No |
| Voltage | 230 / 460 V |
| Blade Type | Galvalum |
| Finish | Aluminum |
| CFM High | 3620 CFM |
| Cycle | 60 |
| Watts | 248.567 W |
| Housing Material | Aluminum |
| Decibels | 77 |
| Motor Enclosure | TEAP |
| Warranty | 1 yr |
| Certifications | CETL |
| Manufacturers Part Number | AX20-1M |
| Phase | 3 |
| Weight | 40 lbs |
| Assembly Required | No |
| Diameter | 20 |
| Depth | 17 in |
| Roof Opening Width | 22 in |
| Fan Diameter | 20 in |
| Frame Size | 22 x 22 |
| Height | 21-3/4 in |
| Ceiling Rough Opening | 22 x 22 in |
| Length | 21-3/4 in |
| Width | 22 in |
| Airflow @ 0 Inches Static Pressure | 3620 CFM |
| Material | Aluminum |
| Max Ambient Temperature | 104F |
| Fan Type | Exhaust |
| Number of Speeds | 1 |
| Operating Temperature | Under 104 F |
| Number of Blades | 3 |
| dBA @ 5 ft | 77 |
| Motor Type | Induction motors and are inverter duty rated |
| Impeller Material | Galvalum |
| Mounting Location | Face |
| Energy Star Certified | No |
