Name: Canarm XBL48T10100 48&quot; Belt Drive Single Phase Wall Fan 1HP 21500 CFM
SKU: Canarm WBB1734700
Availability: InStock

New

Canarm XBL48T10100 48" Belt Drive Single Phase Wall Fan 1HP 21500 CFM

Original price was: $467.00.Current price is: $95.99.

SKU: Canarm WBB1734700 Categories: Exhaust Fans, Fans & Blowers, Panel Exhaust Fans Tags: 4, Canarm, Galvanized Steel, HVAC & Fans, N, ODP, Wall, Welded heavy guage steel

Your Security is Our Promise
Buy with confidence, backed by quality.
Superior Quality Goods
Online assistance, always at your service.

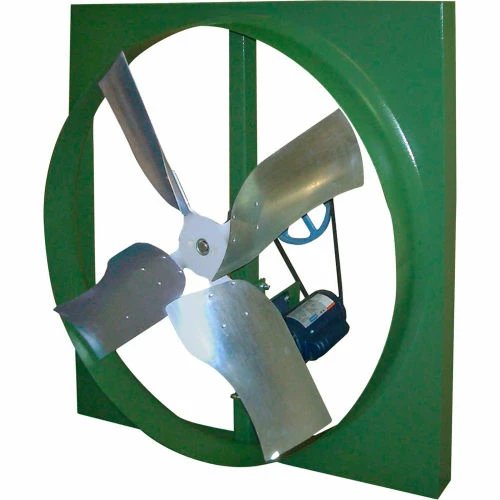

Canarm 48″ Belt Drive Single Phase Wall Fan XBL48T10100 1HP, 21500 CFM

Economy commercial and light duty industrial exhaust fans. These are ideal for Factories, Warehouses, Gymnasiums, Greenhouses, etc. XBL series fans are typically used for low pressure applications with little or no duct work. The XBL series is constructed for efficient, economical operation and are designed to be used primarily as exhaust fans. Featuring heavy gauge steel on the fan panel and post. ODP motors and Durable baked on polyethylene powder coat finish are standard.

Features:

Heavy gauge steel
Galvanized blade
ODP motor
“U” clamp motor mount/belt tensioner

Weight	98 lbs
Brand	Canarm
CFM High	21500 CFM
Voltage	115 / 208 V
Includes	Heavy Guage Steel, Galvanized Blade, ODP motor, "U" Clamp Motor Mount/Belt Tensi
Finish	Powder Coat
RPM High	336 rpm
Drive Type	Belt Drive
Amperage	12.80 A
Hertz	60 Hz
Color Family	Green
Horsepower	1 HP
Blade Type	Galvanized Steel
Depth	17.5 in
Manufacturers Part Number	XBL48T10100
Phase	1
Material	Galvanized Steel
Cord	N
Mounting Location	Wall
Motor Type	ODP
Number of Blades	4
Assembly Required	Welded heavy guage steel
Width	53.625 in
Height	53.625 in
Fan Diameter	54 in
Description	48" Belt Drive Single Phase Wall Fan
