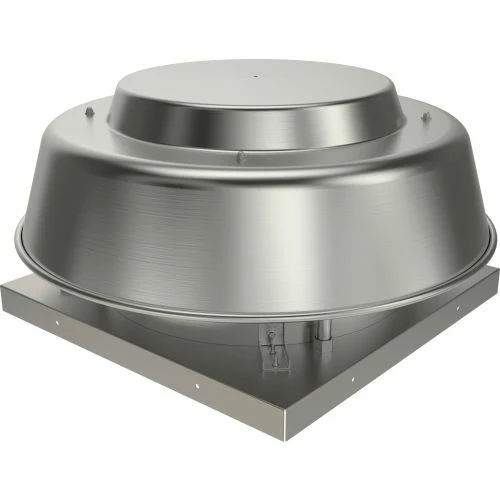

Fantech 10″ Direct Drive Axial Roof Vent 5ADE102A, 1/30 HP, 115V, 1 PH, 547 CFM, ODP

Direct-drive axial roof ventilators are designed for use in applications requiring the steady exhaust of air under low to moderate static pressures. All models are manufactured from durable spun aluminum; venturi, inlet and supports are galvanized. Blades are made from stamped aluminum. Ventilators are wall mountable.

Features:

All ventilators are UL 705 Standard listed
Inlet temperatures up to 140°F
Junction box mounted in motor compartment
Built-in bird screen to protect discharge and ensure safe operation
Externally cooled motor compartment
Speed controllable

Weight	83 lbs
Brand	Fantech
Warranty	1 yr
Description	Downblast Ventilator
Watts	24.9 W
CFM High	547 CFM
Voltage	115 V
RPM High	1,759 rpm
Speed Controllable	Y
Sones	9.3
Drive Type	Direct Drive
Hertz	60 Hz
Horsepower	1/30 HP
Manufacturers Part Number	5ADE102A
Base Length	19 in
Phase	1
Material	Galvanized Steel
Peak Fan Power Input	24.9 BHP
Mounting Location	Roof
Motor Type	ODP
For Use With	5ACC03SC
Operating Temperature	Up To 140°F
Number of Speeds	Variable
Width	23-5/8 in
Length	13-3/8 in
Height	13-3/8 in
Fan Diameter	10 in
Certifications	AMCA Air, AMCA Sound, cULus
