Name: Fantech 24&quot; Roof Ventilator Belt Drive Downblast 5BDD24GB-A, 1/2 HP, 115/230V, 1 PH, 7107 CFM, ODP
SKU: Fantech WBB2146371
Availability: InStock

New

Fantech 24" Roof Ventilator Belt Drive Downblast 5BDD24GB-A, 1/2 HP, 115/230V, 1 PH, 7107 CFM, ODP

Original price was: $497.00.Current price is: $91.99.

SKU: Fantech WBB2146371 Categories: Exhaust Fans, Fans & Blowers, Roof Ventilators Tags: 1119 BHP, 5ACC01MS, Fantech, Galvanized Steel, HVAC & Fans, ODP, Roof, Up To 170°F

Your Security is Our Promise
Buy with confidence, backed by quality.
Superior Quality Goods
Online assistance, always at your service.

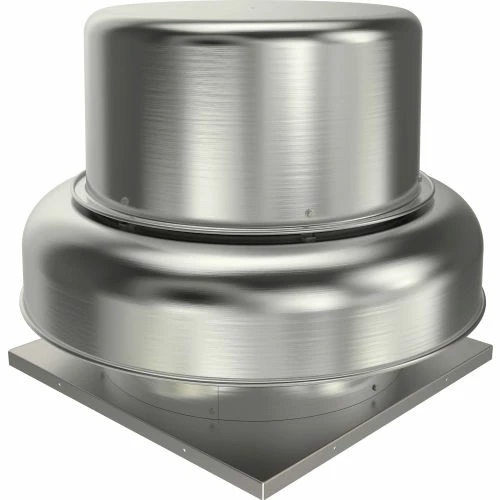

Fantech 24″ Roof Ventilator Belt Drive Downblast 5BDD24GB-A, 1/2 HP, 115/230V, 1 PH, 7107 CFM, ODP

Roof mounted belt drive downblast ventilators are designed to exhaust air out of commercial and industrial buildings. These models are for roof mounting only. Motor and wheel are easily detachable without removing ventilator from curb. Permanently lubricated ball bearings (5BDD10 – 5BDD13) and regreasable pillow block bearings (5BDD15 – 5BDD24).

Features:

All ventilators are UL 705 Standard listed
Durable spun aluminum construction with steel support braces
Inlet temperatures up to 170°F
Backward inclined aluminum fan wheel
Equipped with a built-in bird screen to protect discharge
Externally cooled motor compartment

Weight	254 lbs
Brand	Fantech
Warranty	2 yr
Description	Downblast Ventilator
Watts	1,119 W
CFM High	7107 CFM
Voltage	120 / 230 V
RPM High	832 rpm
Speed Controllable	N
Sones	19.6
Drive Type	Belt Drive
Hertz	60 Hz
Horsepower	1/2 HP
Manufacturers Part Number	5BDD24GB-A
Base Length	34 in
Phase	1
Material	Galvanized Steel
Peak Fan Power Input	1119 BHP
Mounting Location	Roof
Motor Type	ODP
For Use With	5ACC01MS
Operating Temperature	Up To 170°F
Width	44-1/4 in
Length	33 in
Height	33 in
Fan Diameter	24 in
Base Height	1-1/2 in
Certifications	AMCA Air, cULus
