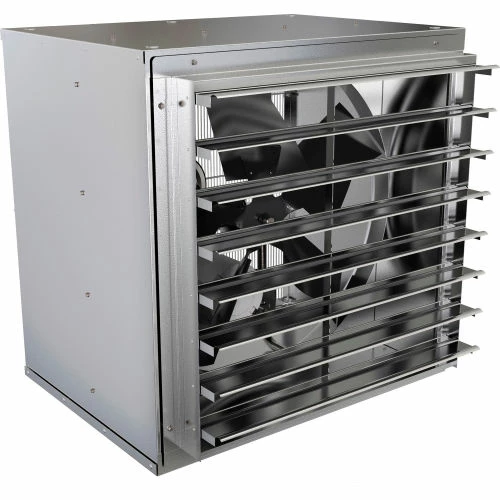

Fantech 36″ Standard Duty Wall Mount Cabinet Fan 1WMC36F2, 1 HP, 115V, 1 PH, 12395 CFM

Wall Mount Cabinet Exhaust fans are designed for use with light to medium duty applications such as greenhouses, factories and warehouses. Each unit is shipped fully assembled with wall collar, guard and damper for easy installation.

Features:

All ventilators are UL Standard 705 listed
Wall-mounting brackets included
All galvanized steel construction with powder-coated propellers
Maximum inlet temperature is 120°F
High-efficiency propellers and press-fit pillow block bearings
Variable pitch sheaves allow reduction of fan speed and air performance up to 25%
Shipped ready to install

Weight	202 lbs
Horsepower	1 HP
Warranty	1 yr
Description	Standard Duty Wall Mount Cabinet Fan
CFM High	12395 CFM
Voltage	115 V
Speed Controllable	N
Sones	20
Hertz	60 Hz
Amperage	14.50 / 7.40 A
Drive Type	Belt Drive
Color Family	Silver
Brand	Fantech
Fan Diameter	36 in
Manufacturers Part Number	1WMC36F2
Phase	1
Material	Galvanized Steel
Mounting Location	Wall
For Use With	5ACC01MS
Operating Temperature	Up To 120°F
Width	40-1/4 in
Length	40-1/4 in
Height	32-1/4 in
Blade Diameter	36 in
Certifications	AMCA Air, AMCA Sound, cULus
