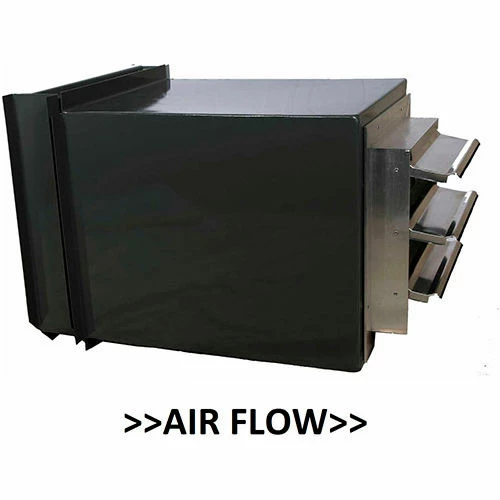

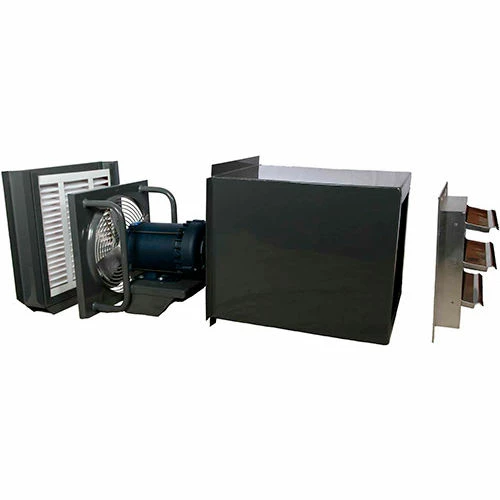

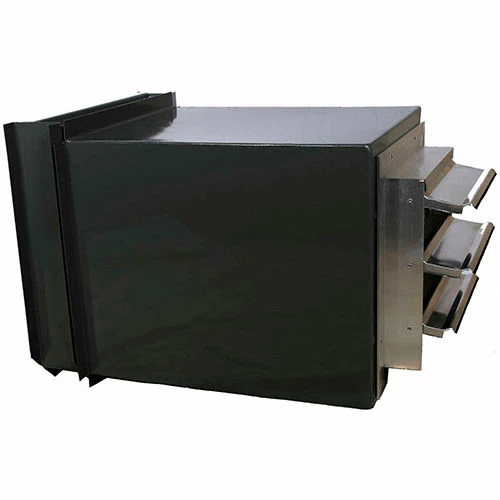

The 900 CAF Series Filtered Exhaust Fan is excellent for use where filtered exhaust air is required. Efficiently supplies clean, filtered air for OEM machinery and equipment markets such as pressurizing electrical cabinets. Economical choice for small un-ducted paint spray booths. Rugged spark-resistant aluminum propellers are standard. Removable filter box comes with four 2″ disposable filters that are high capacity, pleated type that meet MERV 8 rating suitable for filtering light spray paint, dust and small particles. Comes with TEFC motor and standard OSHA style propeller guard. Available optional accessories and applications are available upon request like harsh environment coatings and inlet weather hood. Unit can also be special ordered as an intake fan for the same price, please contact your Global sales representative for additional information.
| Weight | 250 lbs |
|---|---|
| Brand | Global Industrial |
| Decibels | 83 |
| CFM High | 6350 CFM |
| Voltage | 230 / 460 V |
| RPM High | 1,725 rpm |
| Amperage | 3.12 A |
| Drive Type | Direct Drive |
| Hertz | 60 Hz |
| Color Family | Gray |
| Horsepower | 1 HP |
| Speed | Single rpm |
| Fan Diameter | 24 in |
| Blade Type | Axial / Cast Aluminum |
| Manufacturers Part Number | B2220422 |
| Phase | 3 |
| Material | Steel |
| Motor Type | Totally Enclosed |
| Number of Blades | 6 |
| For Use With | Filtered Intake / Exhaust Air |
| Width | 31-3/8 in |
| Length | 32-3/4 in |
| Height | 32-3/4 in |
| Warranty | 1 yr |
