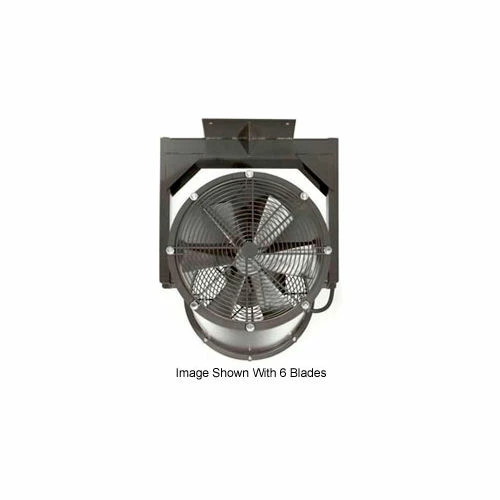

Global Industrial’s series 1-way yoke mount provides portable cooling for personnel or processes. Heavy duty construction provides many years of service in demanding industrial locations such as steel mills, foundries, factories and warehouses.
Optional specifications available include :
- 3 phase 230/460V
- Explosion Proof Motor
- 1/3, 1/2, 3/4, 1, 1-1/2, or 3 HP Motor
Features and Benefits
- Swivels 180° on a horizontal axis
- Front & rear OSHA style concentric circle wire guards on all sizes except 60″ which is 1/2″ wire mesh
- Rugged spark-resistant cast aluminum propellers are standard
- Industrial grade TEFC motors are standard
- Explosion proof motors available for hazardous locations
- All models have cord wired to motor and extended through fan housing except explosion proof fans
Optional Accessories
- Manual starting switches with built-in overload protection, mounted & wired for fans with TEFC motors only
- Coatings available for outdoor service or harsh environments
- Fabricated steel propellers
| Depth | 20 in |
|---|---|
| Brand | Global Industrial |
| Decibels | 80 |
| Description | Aluminum Propeller Fan w/ 1 Way Swivel Yoke |
| Oscillating/Non Oscillating | Non-Oscillating |
| CFM High | 5200 CFM |
| Voltage | 115 V |
| RPM High | 1,725 rpm |
| Drive Type | Direct |
| Color Family | Gray |
| Horsepower | 1/4 HP |
| Manufacturers Part Number | B185261 |
| Fan Diameter | 24 in |
| Blade Type | Aluminum |
| Phase | 1 |
| Material | Aluminum |
| Mounting Location | Ceiling or Wall |
| Motor Type | Totally Enclosed |
| Number of Blades | 2 |
| Fan Type | Heavy Duty |
| Assembly Required | Assembled |
| Width | 26 in |
| Height | 26 in |
| Certifications | CSA Certified, OSHA Compliant |
