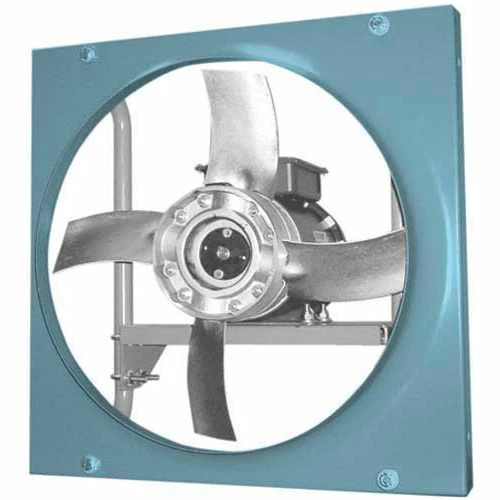

Hartzell 24″ Direct Drive Panel Fan-Ser.2SH, 3 Ph, 0.98 Pk Fan-Ser.2SG, BHP
Exclusive Air-Seal design, totally enclosed fan cooled motor, ABS certified.
| Dimension U | 1 in |
|---|---|
| Drive Type | Direct |
| Brand | Hartzell |
| RPM | 1750 rpm |
| Horsepower | 1 HP |
| P | 1'1-1/20 |
| Series | S02SG |
| Amperage | 3 / 1.50 A |
| N | 2 |
| F Max | 14-3/4 |
| Max Motor Horsepower | 1-1/2 HP |
| Max Motor Frame | 145T |
| F1 Max | 14-5/16 |
| Voltage | 230 / 460 V |
| CFM High | 8058 CFM |
| Description | Panel Fan |
| T | 3 |
| Motor Frame Min | 48 |
| Manufacturers Part Number | S02SH-243AL250STFCH3 |
| Dimension A | 24-3/16 |
| Dimension M | 2-1/2 |
| Dimension B | 28 |
| Dimension L | 14 GA. |
| Max Weight Steel Motor | 78 lbs |
| Dimension D | 2 |
| Dimension C | 3-1/2 in |
| Fan Diameter | 24 in |
| Dimension S | 7/16 X 3/4 |
| Dimension G | 5-1/2 in |
| Phase | 3 |
| Max Airflow at Free Air | 1-1/2 |
| Standard Max Operating Temperature | 120 |
| Fan Type | Propeller Fan and Wall Ventilator |
| dBA @ 5 ft | 77 |
| R | 23 |
| Peak Fan Power Input | 0.98 BHP |
| Material | Steel |
| Warranty | 1 yr |
