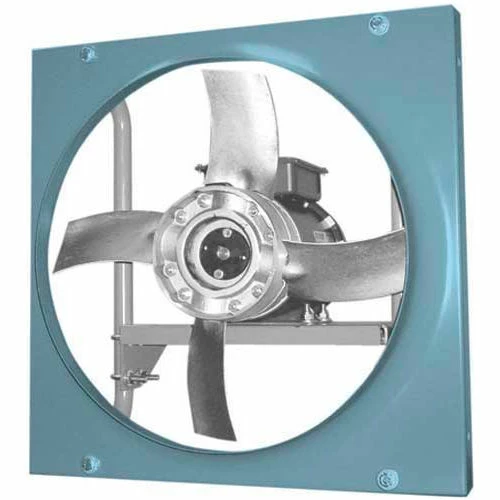

Hartzell 28″ Direct Drive Panel Fan-Ser.2SH, 3 Ph, 1.01 Pk Fan-Ser.2SG, BHP
Exclusive Air-Seal design, totally enclosed fan cooled motor, ABS certified.
| Dimension U | 1-1/4 in |
|---|---|
| Drive Type | Direct |
| Brand | Hartzell |
| RPM | 1160 rpm |
| Horsepower | 1 HP |
| P | 14.00 |
| Series | S02SG |
| Amperage | 3.60 / 1.80 A |
| N | 2 |
| Manufacturers Part Number | S02SH-283AL265STFCH4 |
| Max Motor Horsepower | 2 HP |
| Max Motor Frame | 145T |
| F1 Max | 18-9/16 |
| Voltage | 230 / 460 V |
| CFM High | 10030 CFM |
| Description | Panel Fan |
| T | 3 |
| Motor Frame Min | 48 |
| F Max | 20-1/2 |
| Dimension A | 28-3/16 |
| Dimension M | 2-1/2 |
| Dimension B | 33 |
| Dimension L | 14 GA. |
| Max Weight Steel Motor | 102 lbs |
| Dimension D | 2-1/2 |
| Dimension C | 3-1/2 in |
| Fan Diameter | 28 in |
| Dimension S | 7/16 X 3/4 |
| Dimension G | 6 in |
| Phase | 3 |
| Max Airflow at Free Air | 1-1/2 |
| Standard Max Operating Temperature | 120 |
| Fan Type | Propeller Fan and Wall Ventilator |
| dBA @ 5 ft | 70 |
| R | 28 |
| Peak Fan Power Input | 1.01 BHP |
| Material | Steel |
| Warranty | 1 yr |
