Hessaire incorporates industry leading fan, motor and blade design capabilities in all air movement products. Hessaire’s galvanized box fan line features heavy gauge G90 galvanized components for long life and harsh environments, heavy gauge galvanized wire guards, and sealed ball bearing ag duty motors. Industrial grade fan blades are matched with the motors for maximum efficiencies, airflow and motor life. Each box fan includes a hanging bracket as well as eyebolt holes in the cabinets for hanging options. For models with discharge shutters, shutters feature heavy gauge extruded aluminum components. Louvers are counterbalanced for optimum performance.
$547.00 Original price was: $547.00.$94.99Current price is: $94.99.
SKU: Hessaire WBB2201930 Categories: Cabinet Exhaust Fans, Exhaust Fans, Fans & Blowers Tags: 1, 1 HP, 1725 rpm, 60 Hz, Belt Drive, Hessaire, HVAC & Fans, Silver
- Your Security is Our Promise
- Buy with confidence, backed by quality.
- Superior Quality Goods
- Online assistance, always at your service.

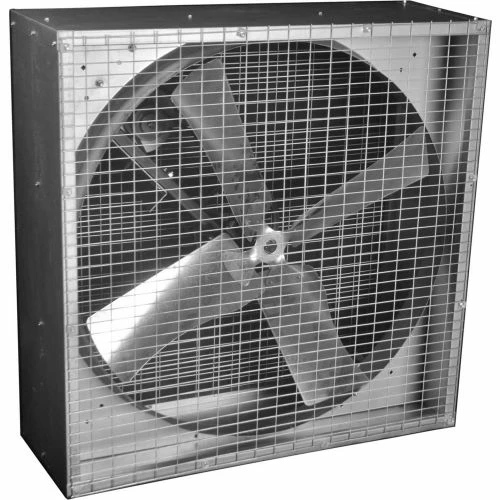

Hessaire 48″ Belt Drive Box Fan 48X750-N, 1HP, 1PH, 19608 CFM
| Weight | 88 lbs |
|---|---|
| Drive Type | Belt Drive |
| Brand | Hessaire |
| Decibels | 77.9 |
| Manufacturers Part Number | 48X750-N |
| Phase | 1 |
| CFM High | 19608 CFM |
| Material | Galvanized Steel |
| Voltage | 115 / 230 V |
| Amperage | 8.60 A |
| Number of Speeds | 1 |
| Fan Diameter | 48 in |
| Hertz | 60 Hz |
| Color Family | Silver |
| Horsepower | 1 HP |
| RPM | 1725 rpm |
| Width | 29 in |
| Length | 52-1/8 in |
| Discharge Head | Screen ft |
| Height | 52-1/8 in |
| Warranty | 2 yr |
