$561.00 Original price was: $561.00.$93.99Current price is: $93.99.
SKU: Hessaire WBB3120546 Categories: Cabinet Exhaust Fans, Exhaust Fans, Fans & Blowers Tags: 1, 104°F, 3, Exhaust, Hessaire, HVAC & Fans, No, TEAO
- Your Security is Our Promise
- Buy with confidence, backed by quality.
- Superior Quality Goods
- Online assistance, always at your service.

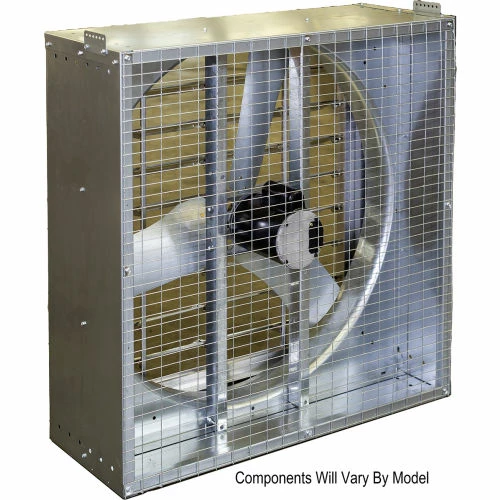

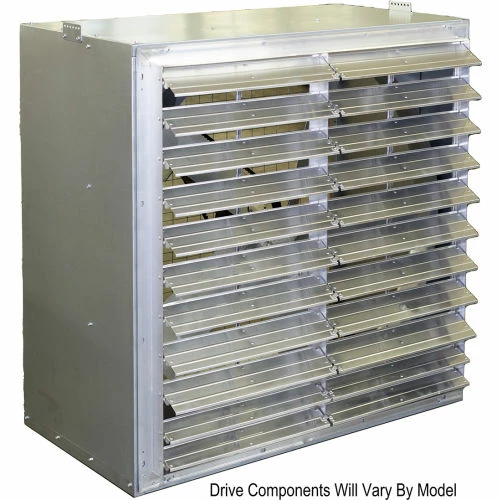

Fully assembled, ready to install. Heavy gauge galvanized cabinet contruction for rigidity and long life. Balanced industrial grade propeller matched with motor for maximum efficiencies. Larger horsepower motors provide maximum cfm at lower static pressures. Extruded aluminum, corrosion resistant shutters provide protection from outside elements. Discharge shutters are counterweighted to reduce opening pressure. Ideal for use in commercial/industrial and agricultural applications. Motor features permanently lubricated ball bearing construction with automatic thermal protection shut off. Motor type is TEAO, IP55 rated, 56 frame. 2 Year Limited Warranty
| Weight | 130 lbs |
|---|---|
| Horsepower | 1 HP |
| Warranty | 2 Limited yr |
| Mounting Style | Wall |
| Decibels | 78 |
| Watts | 1050 W |
| CFM High | 12510 CFM |
| Voltage | 115 V |
| Voltage Range | 115/208-230 V |
| RPM High | 825 rpm |
| Amps Range | 11.0/5.8-5.5 A |
| Amperage | 11 A |
| Drive Type | Direct |
| Hertz | 60 Hz |
| Color Family | Gray |
| Brand | Hessaire |
| Depth | 24 in |
| Manufacturers Part Number | 36DL750S |
| Blade Type | Galvanized steel |
| Phase | 1 |
| Mounting Location | Exterior wall |
| Motor Type | TEAO |
| Number of Blades | 3 |
| Number of Speeds | 1 |
| Fan Type | Exhaust |
| Max Ambient Temperature | 104 °F |
| Assembly Required | No |
| Length | 40 in |
| Width | 24 in |
| Height | 40 in |
| Fan Diameter | 36 in |
| Certifications | CE, UL |
