Name: Hessaire Cabinet Exhaust Fan w/ Shutter, 42&quot; Prop, 1HP, 15565 CFM, 3 Phase, Direct Drive
SKU: Hessaire WBB3120549
Availability: InStock

New

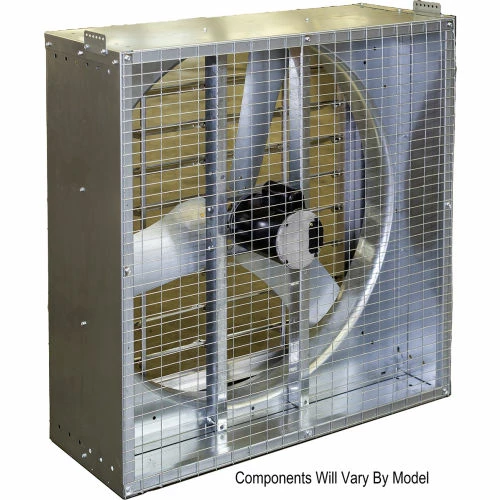

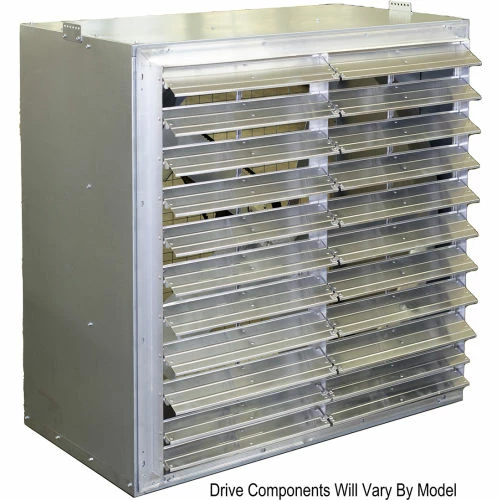

Hessaire Cabinet Exhaust Fan w/ Shutter, 42" Prop, 1HP, 15565 CFM, 3 Phase, Direct Drive

Hessaire Cabinet Exhaust Fan w/ Shutter, 42" Prop, 1HP, 15565 CFM, 3 Phase, Direct Drive - Image 2

Hessaire Cabinet Exhaust Fan w/ Shutter, 42" Prop, 1HP, 15565 CFM, 3 Phase, Direct Drive - Image 3

Original price was: $520.00.Current price is: $97.99.

SKU: Hessaire WBB3120549 Categories: Cabinet Exhaust Fans, Exhaust Fans, Fans & Blowers Tags: 1, 104°F, 3, Exhaust, Hessaire, HVAC & Fans, No, TEAO

Your Security is Our Promise
Buy with confidence, backed by quality.
Superior Quality Goods
Online assistance, always at your service.

Fully assembled, ready to install. Heavy gauge galvanized cabinet contruction for rigidity and long life. Balanced industrial grade propeller matched with motor for maximum efficiencies. Larger horsepower motors provide maximum cfm at lower static pressures. Extruded aluminum, corrosion resistant shutters provide protection from outside elements. Discharge shutters are counterweighted to reduce opening pressure. Ideal for use in commercial/industrial and agricultural applications. Motor features permanently lubricated ball bearing construction with automatic thermal protection shut off. Motor type is TEAO, IP55 rated, 56 frame. 2 Year Limited Warranty

Weight	150 lbs
Horsepower	1 HP
Warranty	2 Limited yr
Mounting Style	Wall
Decibels	80
Watts	1050 W
CFM High	15565 CFM
Voltage	208 V
Voltage Range	208-230/460 V
RPM High	825 rpm
Amps Range	4.8-4.6/2.3 A
Amperage	4.8 A
Drive Type	Direct
Hertz	60 Hz
Color Family	Gray
Brand	Hessaire
Depth	24 in
Manufacturers Part Number	42DL750TS
Blade Type	Galvanized steel
Phase	3
Mounting Location	Exterior wall
Motor Type	TEAO
Number of Blades	3
Number of Speeds	1
Fan Type	Exhaust
Max Ambient Temperature	104 °F
Assembly Required	No
Length	46 in
Width	24 in
Height	46 in
Fan Diameter	42 in
Certifications	CE, UL
