Original price was: $541.00.$95.99Current price is: $95.99.
- Your Security is Our Promise
- Buy with confidence, backed by quality.
- Superior Quality Goods
- Online assistance, always at your service.

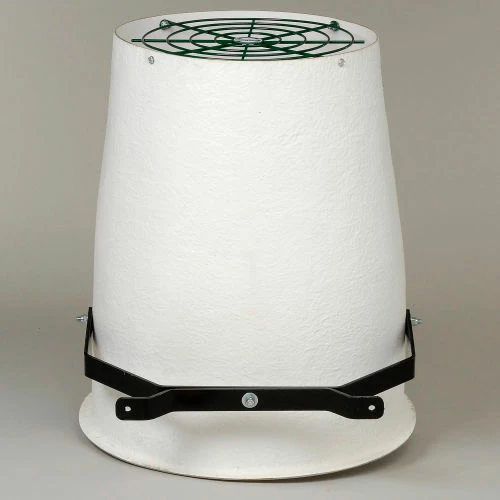

16″ Diameter Fan
Provides low cost air circulation that’s ideal for greenhouses, hog barns, poultry buildings and factories. Energy efficient variable speed direct drive 1/3 HP motor is enclosed and features sealed ball bearings and automatic thermal overload protection for long life. Durable, rust resistant fiberglass housing provides increased stability over poly funnel fans. Features heavy-duty steel center hub and 3 balanced aluminum fan blades for energy conservation. Tapered outlet condenses exhaust air into a tight stream for higher velocity. Mounting bracket allows tilt angle adjustments vertically and horizontally for airflow adjustments. Motor is CSA Certified. 115V/230V. 3.8/1.9 amps. 2 Year Limited Warranty. Horsepower rating based upon maximum speed/load.
| Weight | 44 lbs |
|---|---|
| Brand | J&D Manufacturing |
| Warranty | 2 yr |

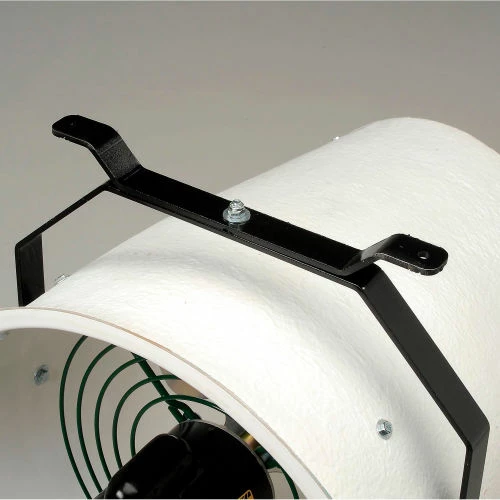

| Mounting Style | Yoke Mount |
| Decibels | 62 |
| Power Cord Type | Not Included |
| Description | Fiberglass Funnel Fan |
| Oscillating/Non Oscillating | Non-Oscillating |
| CFM High | 1680 CFM |
| Voltage | 115 / 230 V |
| Includes | Fan with Yoke Mount |
| Amperage | 3.8/1.9 A |
| Drive Type | Direct Drive |
| Hertz | 60 Hz |
| Color Family | White |
| Horsepower | 1/3 HP |
| Blade Type | Aluminum |
| Fan Diameter | 16 in |
| Manufacturers Part Number | VU16F |
| Phase | 1 |
| Material | Fiberglass |
| Motor Type | Totally Enclosed |
| Blade Color Family | Silver |
| Number of Blades | 3 |
| For Use With | Greenhouses, Factories, Warehouses, Stadiums, Dairy Barns |
| Number of Speeds | Variable |
| Fan Type | Industrial, Agricultural |
| Assembly Required | Assembled |
| Max Ambient Temperature | 104 °F |
| Width | 20 in |
| Length | 20 in |
| Height | 26 in |
| Certifications | CSA Certified |
