FIBERGLASS FUNNEL FAN
20″ Diameter Fan

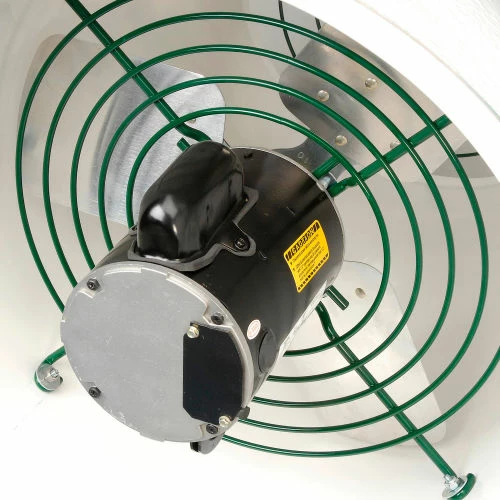

Provides low cost air circulation that’s ideal for greenhouses, hog barns, poultry buildings and factories. Energy efficient variable speed direct drive 1/2HP motor is enclosed and features sealed ball bearings and automatic thermal overload protection for long life. Durable, rust resistant fiberglass housing provides increased stability over poly funnel fans. Features heavy-duty steel center hub and 3 balanced aluminum fan blades for energy conservation. Tapered outlet condenses exhaust air into a tight stream for higher velocity. Mounting bracket allows tilt angle adjustments vertically and horizontally for airflow adjustments. Motor is CSA Certified. 115V/230V. 4.8/2.4 amps. 2 Year Limited Warranty. Horsepower rating based upon maximum speed/load.
20″ Diameter Fan
Provides low cost air circulation that’s ideal for greenhouses, hog barns, poultry buildings and factories. Energy efficient variable speed direct drive 1/2HP motor is enclosed and features sealed ball bearings and automatic thermal overload protection for long life. Durable, rust resistant fiberglass housing provides increased stability over poly funnel fans. Features heavy-duty steel center hub and 3 balanced aluminum fan blades for energy conservation. Tapered outlet condenses exhaust air into a tight stream for higher velocity. Mounting bracket allows tilt angle adjustments vertically and horizontally for airflow adjustments. Motor is CSA Certified. 115V/230V. 4.8/2.4 amps. 2 Year Limited Warranty. Horsepower rating based upon maximum speed/load.
| Weight | 47 lbs |
|---|---|
| Brand | J&D Manufacturing |
| Warranty | 2 yr |
| Mounting Style | Yoke Mount |
| Decibels | 65 |
| Power Cord Type | Not Included |
| Description | Fiberglass Funnel Fan |
| Oscillating/Non Oscillating | Non-Oscillating |
| CFM High | 2870 CFM |
| Voltage | 115 / 230 V |
| Includes | Fan with Yoke Mount |
| Amperage | 4.8/2.4 A |
| Drive Type | Direct Drive |
| Hertz | 60 Hz |
| Color Family | White |
| Horsepower | 1/2 HP |
| Blade Type | Aluminum |
| Fan Diameter | 20 in |
| Manufacturers Part Number | VU20F2 |
| Phase | 1 |
| Material | Aluminum |
| Motor Type | Totally Enclosed |
| Blade Color Family | Silver |
| For Use With | Greenhouses, Factories, Warehouses, Stadiums, Dairy Barns |
| Number of Blades | 3 |
| Number of Speeds | Variable |
| Fan Type | Industrial, Agricultural |
| Assembly Required | Assembled |
| Max Ambient Temperature | 104 °F |
| Width | 23 in |
| Length | 23 in |
| Height | 27 in |
| Certifications | CSA Certified |
