WALL MASTER GALVANIZED EXHAUST FANS
J&D 36″ Diameter Fan – 1-Speed, Three Phase Belt Drive Motor – Galvanized Blades

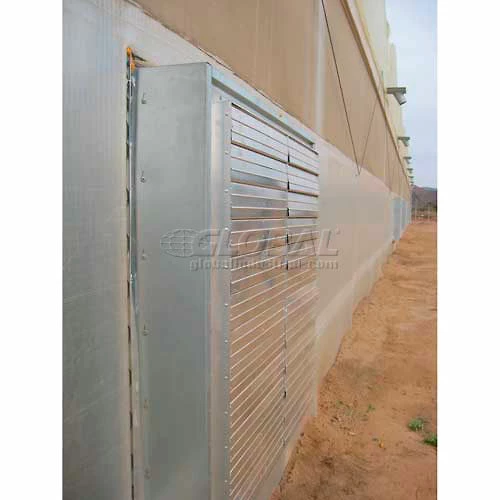

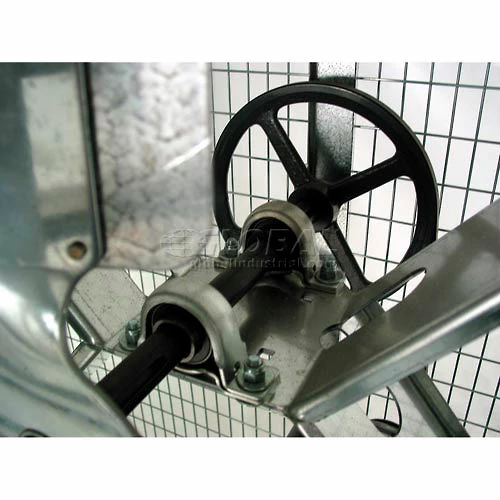

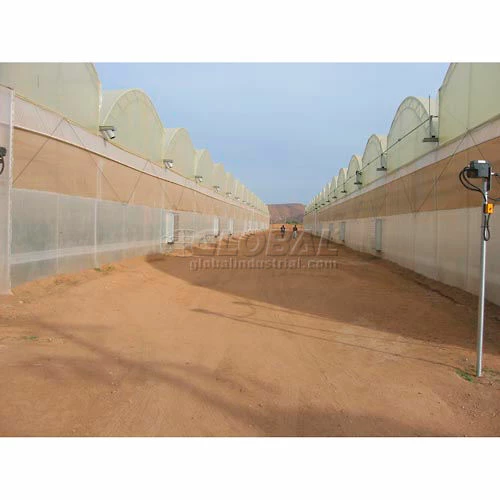

Eliminates heat build-up in barns, greenhouses and industrial buildings. Exhaust fans feature external aluminum shutters with tie bars to help prevent shutter flapping. Heavy-duty 18 gauge steel housing. Hot dipped after welded, galvanized 1″ x 2″ x 12 gauge removable wire mesh guards. Includes poly guard clips to reduce vibration. Totally enclosed motor has sealed ball bearings and automatic thermal overload protection. Galvanized X-frame motor mount provides rigidity for long life and quiet operation. 4 galvanized steel blades are balanced for smooth operation. Exhaust fans include provisions for hardwire installation. Field convertible 230/460V. Motor is UL/ULC recognized. 2 Year Limited Warranty. Horsepower rating based upon maximum speed/load.
J&D 36″ Diameter Fan – 1-Speed, Three Phase Belt Drive Motor – Galvanized Blades
Eliminates heat build-up in barns, greenhouses and industrial buildings. Exhaust fans feature external aluminum shutters with tie bars to help prevent shutter flapping. Heavy-duty 18 gauge steel housing. Hot dipped after welded, galvanized 1″ x 2″ x 12 gauge removable wire mesh guards. Includes poly guard clips to reduce vibration. Totally enclosed motor has sealed ball bearings and automatic thermal overload protection. Galvanized X-frame motor mount provides rigidity for long life and quiet operation. 4 galvanized steel blades are balanced for smooth operation. Exhaust fans include provisions for hardwire installation. Field convertible 230/460V. Motor is UL/ULC recognized. 2 Year Limited Warranty. Horsepower rating based upon maximum speed/load.
| Fan Diameter | 36 in |
|---|---|
| Amperage | 3.2 / 1.6 A |
| Warranty | 2 yr |
| Decibels | 64 |
| Description | Wall Master Exhaust Fan |
| Watts | 18.1 W |
| CFM High | 11400 CFM |
| Voltage | 230 / 460 V |
| Amps @ 230V | 1.4 A |
| RPM High | 650 rpm |
| Amps @ 120V | 2.8 A |
| Hertz | 60 Hz |
| Drive Type | Belt Drive |
| Height | 41 in |
| Horsepower | 1 HP |
| Brand | J&D Manufacturing |
| Manufacturers Part Number | VF36GG3 |
| Blade Type | Galvanized |
| Phase | 3 |
| Material | Galvanized Steel |
| Motor Type | Totally Enclosed |
| Number of Blades | 4 |
| Number of Speeds | 1 |
| Assembly Required | Unassembled |
| Length | 41 in |
| Certifications | UL and ULC Listed |
