$443.00 Original price was: $443.00.$95.99Current price is: $95.99.
SKU: Multifan WBB726195 Categories: Cooling Fans, Fans & Blowers, Industrial Cooling Fans Tags: 140 °F, 6, HVAC & Fans, Industrial, Multifan, Truck Cooling, Pick Modules, Tight Spaces, Unassembled, Variable
- Your Security is Our Promise
- Buy with confidence, backed by quality.
- Superior Quality Goods
- Online assistance, always at your service.

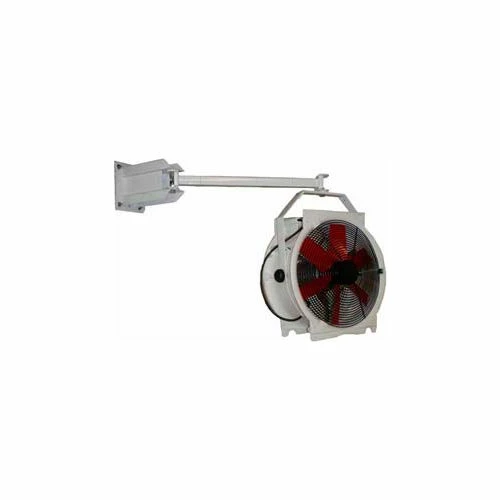

The deep Venturi creates a focused air stream to reach farther into the trailer. The motor and blade combination create high volumes of air, but are matched together to provide an efficient fan system. Built with corrosion resistant components the fan is excellent in wet environments. Light weight, durable plastic outer shell. Heavy duty motor uses sealed ball bearings front and rear, precision C4 Clearance, specialty designed high temp lubricants and protection for optimized durability. Engineered support arm sold with the fan is welded box steel, and painted white to match the fan housing. 3 Year Limited Warranty on the motor.
| Weight | 43 lbs |
|---|---|
| Brand | Multifan |
| Warranty | 3 on Motor |
| Motor Insulation | Class F |
| Decibels | 56 |
| Description | Truck Dock Fan |
| Watts | 432 W |
| Oscillating/Non Oscillating | Non-Oscillating |
| CFM High | 5480 CFM |
| Voltage | 120 V |
| RPM High | 1,600 rpm |
| Amperage | 3.6 A |
| Hertz | 60 Hz |
| Color Family | Gray |
| Horsepower | 1/3 HP |
| Type | Dock Fan |
| Manufacturers Part Number | B4E50K2M72392 |
| Depth | 14 in |
| Fan Type | Industrial |
| Fan Diameter | 20 in |
| Height | 25 in |
| Length | 36 in |
| Width | 25 in |
| Max Ambient Temperature | 140 °F |
| Assembly Required | Unassembled |
| Number of Speeds | Variable |
| Blade Type | Polypropylene |
| For Use With | Truck Cooling, Pick Modules, Tight Spaces |
| Number of Blades | 6 |
| Motor Type | Totally Enclosed |
| Mounting Location | Wall |
| Material | Polypropylene |
| Phase | 1 |
| Certifications | UL & cUL Listed |
Be the first to review “Multifan 16" Totally Enclosed Truck Dock Fan, 5,480 CFM, 1 Phase, 1/3 HP” Cancel reply
