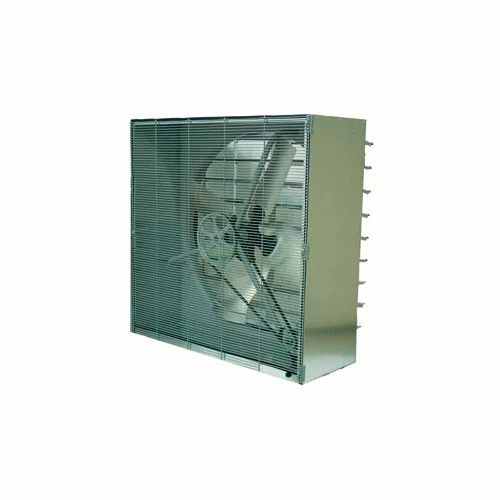

Name: TPI 24 Cabinet Exhaust Fan With Shutters CBT-24B-3 1/3 HP 3270 CFM 3 PH
SKU: TPI WB245739
Availability: InStock

New

TPI 24 Cabinet Exhaust Fan With Shutters CBT-24B-3 1/3 HP 3270 CFM 3 PH

Original price was: $480.00.Current price is: $91.99.

SKU: TPI WB245739 Categories: Cabinet Exhaust Fans, Exhaust Fans, Fans & Blowers Tags: 1.90 / 0.90 A, 1/3 HP, 230 / 460 V, Assembled, Ball Bearing, Permanently Lubricated, Drip Proof, Belt, HVAC & Fans, TPI

Your Security is Our Promise
Buy with confidence, backed by quality.
Superior Quality Goods
Online assistance, always at your service.

CABINET EXHAUST FANS WITH SHUTTERS
24″Diameter Fan with 230/460V 3-Phase Motor
Durable steel cabinet fans feature sturdy housing for through-the-wall installation. Cabinet exhaust fans are made to last using 18 gauge galvanized steel housing with 20 gauge powder coated venturi. 4 aluminum fan blades are powered with a ball bearing motor that is permanently lubricated and drip proof for low maintenance. Aluminum shutters provide convenient, controllable exhaust for industrial environments. Includes lead wires for hard wiring. Meets OSHA standards. UL listed. Fully assembled. 1 Year Limited Warranty. Horsepower rating based upon maximum speed/load.

Weight	100 lbs
Voltage	230 / 460 V
Warranty	1 yr
Brand	TPI
Blade Type	Aluminum
Manufacturers Part Number	CBT24B3
Phase	3
Material	Steel / Aluminum
CFM High	3270 CFM
Motor Type	Ball Bearing, Permanently Lubricated, Drip Proof
Fan Diameter	24 in
Amperage	1.90 / 0.90 A
Drive Type	Belt
Horsepower	1/3 HP
Assembly Required	Assembled
Width	28-1/4 in
Depth	19 in
Height	28-1/4 in
Blade Diameter	24 in
Certifications	UL Listed
