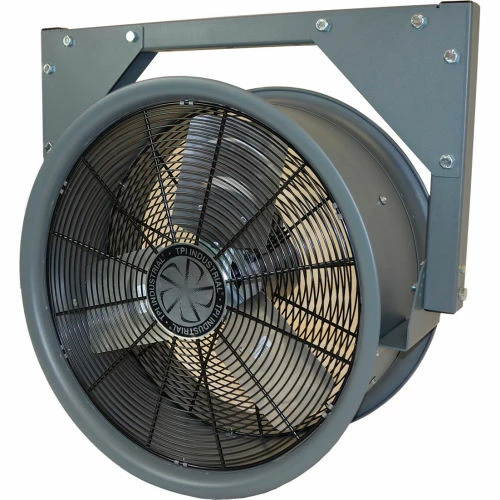

TPI’s Industrial high velocity air circulators are constructed of 20 gauge steel housing with a gray epoxy textured powder coat finish. The yoke bracket allows for five adjustable settings at 15° variations. The front and rear grills are OSHA approved and have a thick powder coat finish. The motor is a Totally Enclosed Air Over (TEAO) class B automatic thermal protection with ball bearings. These HV air circulators provide ideal solutions for warehouse areas, jobsites, dock areas, manufacturing facilities, workstations, industrial facilities and more. Optional wall / column brackets (sold separately) allow for various mounting options. This product has a limited warranty of 2 Years. This product is made in USA.
| Weight | 58 lbs |
|---|---|
| Voltage | 277 V |
| Color Family | Gray |
| Drive Type | Direct Drive |
| Hertz | 60 Hz |
| Amperage | 2.1 A |
| RPM High | 1725 rpm |
| Includes | Yoke Mount Bracket |
| CFM High | 5290 CFM |
| Type | Drum Fan |
| Oscillating/Non Oscillating | Non-Oscillating |
| Watts | 373 W |
| Description | High Velocity Air Circulator |
| Power Cord Type | Hard Wired |
| Housing Material | Steel |
| Decibels | 80 |
| Warranty | 2 yr |
| Horsepower | 1/2 HP |
| Brand | TPI |
| Gauge | 20 |
| Assembly Required | Assembled |
| Depth | 13-1/2 in |
| Cooling Area | 400 in² |
| Fan Diameter | 24 in |
| Height | 31-3/8 in |
| Width | 33-1/4 in |
| Max Ambient Temperature | 115 °F |
| Fan Type | Industrial |
| Manufacturers Part Number | HV24277V |
| Number of Speeds | 1 |
| Number of Blades | 3 |
| Motor Type | TEAO |
| Mounting Location | Beam, Ceiling, Column, or Wall |
| Material | Aluminum |
| Phase | 1 |
| Blade Type | Aluminum |
| Certifications | ETL, cETL Listed, OSHA Approved |
