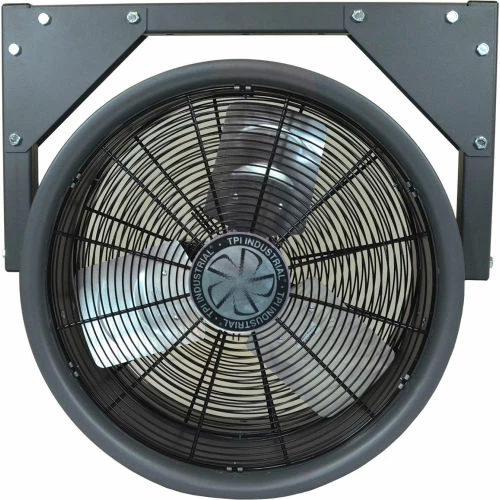

Name: TPI 30&quot; High Velocity Air Circulator Blower Fan w/ Yoke Mount, 9,000 CFM, 1 HP, 277V, 1 Phase
SKU: TPI WBB2353765
Availability: InStock

New

TPI 30" High Velocity Air Circulator Blower Fan w/ Yoke Mount, 9,000 CFM, 1 HP, 277V, 1 Phase

Original price was: $430.00.Current price is: $94.99.

SKU: TPI WBB2353765 Categories: Cooling Fans, Fans & Blowers, Industrial Cooling Fans Tags: 1, 115 °F, 3, Assembled, HVAC & Fans, Industrial, TEAO, TPI

Your Security is Our Promise
Buy with confidence, backed by quality.
Superior Quality Goods
Online assistance, always at your service.

TPI’s industrial high velocity air circulators are constructed of 20-Gauge steel housing with a gray epoxy textured powder coat finish. The yoke bracket allows for five adjustable settings at 15° variations. The front and rear grills are OSHA approved and have a thick powder coat finish. The motor is a Totally Enclosed Air Over (TEAO) class B automatic thermal protection with ball bearings. These HV Air Circulators provide ideal solutions for warehouse areas, jobsites, dock areas, manufacturing facilities, workstations, industrial facilities, and more. Optional wall / column brackets (sold separately) allow for various mounting options. This product is made in USA.

Weight	85 lbs
Voltage	277 V
Color Family	Gray
Drive Type	Direct Drive
Hertz	60 Hz
Amperage	3.6 A
RPM High	1700 rpm
Includes	Yoke Mount Bracket
CFM High	9000 CFM
Type	Drum Fan
Oscillating/Non Oscillating	Non-Oscillating
Watts	746 W
Description	High Velocity Air Circulator
Power Cord Type	Hard Wired
Housing Material	Steel
Decibels	82
Warranty	2 yr
Horsepower	1 HP
Brand	TPI
Gauge	20
Assembly Required	Assembled
Depth	16 in
Cooling Area	620 in²
Fan Diameter	30 in
Height	39 in
Width	38-7/8 in
Max Ambient Temperature	115 °F
Fan Type	Industrial
Manufacturers Part Number	HV30277V
Number of Speeds	1
Number of Blades	3
Motor Type	TEAO
Mounting Location	Beam, Ceiling, Column, or Wall
Material	Aluminum
Phase	1
Blade Type	Aluminum
Certifications	ETL, cETL Listed, OSHA Approved
