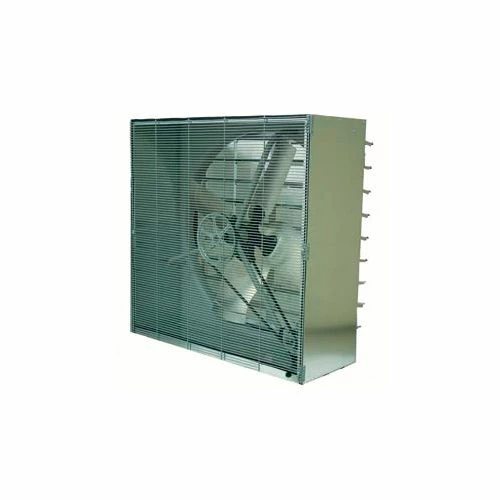

Name: TPI 42 Cabinet Exhaust Fan With Shutters CBT-42B-3 3/4 HP 14800 CFM 3 PH
SKU: TPI WB245742
Availability: InStock

New

TPI 42 Cabinet Exhaust Fan With Shutters CBT-42B-3 3/4 HP 14800 CFM 3 PH

Original price was: $452.00.Current price is: $98.99.

SKU: TPI WB245742 Categories: Cabinet Exhaust Fans, Exhaust Fans, Fans & Blowers Tags: 230 / 460 V, 3.30 / 1.50 A, 3/4 HP, Assembled, Ball Bearing, Permanently Lubricated, Drip Proof, Belt, HVAC & Fans, TPI

Your Security is Our Promise
Buy with confidence, backed by quality.
Superior Quality Goods
Online assistance, always at your service.

CABINET EXHAUST FANS WITH SHUTTERS
42″Diameter Fan with 230/460V 3-Phase Motor
Durable steel cabinet fans feature sturdy housing for through-the-wall installation. Cabinet exhaust fans are made to last using 18 gauge galvanized steel housing with 20 gauge powder coated venturi. 4 aluminum fan blades are powered with a ball bearing motor that is permanently lubricated and drip proof for low maintenance. Aluminum shutters provide convenient, controllable exhaust for industrial environments. Includes lead wires for hard wiring. Meets OSHA standards. UL listed. Fully assembled. 1 Year Limited Warranty. Horsepower rating based upon maximum speed/load.

Weight	155 lbs
Voltage	230 / 460 V
Warranty	1 yr
Brand	TPI
Manufacturers Part Number	CBT42B3
Blade Type	Aluminum
Phase	3
CFM High	14800 CFM
Material	Steel / Aluminum
Motor Type	Ball Bearing, Permanently Lubricated, Drip Proof
Fan Diameter	42 in
Amperage	3.30 / 1.50 A
Drive Type	Belt
Horsepower	3/4 HP
Assembly Required	Assembled
Width	48-1/2 in
Depth	15 in
Height	48-1/2 in
Blade Diameter	42 in
Certifications	UL Listed
